I'm trying to edit a DXF. This is using the latest version 3.25.1 on windows 7

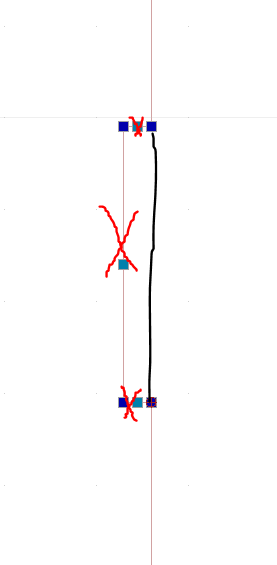

I'd like to remove part of a line, The picture shows what I'm talking about. I'd like to remove the cut out and have it result in a straight line (forgive my mspaint skills).
I'm trying to get away from using rdworks as it won't export dxf's, so figured I'd give Qcad a go.
How to remove points on a line?
Moderator: andrew
Forum rules
Always indicate your operating system and QCAD version.
Attach drawing files and screenshots.
Post one question per topic.
Always indicate your operating system and QCAD version.
Attach drawing files and screenshots.
Post one question per topic.
-
joebywan
- Registered Member
- Posts: 1
- Joined: Sat Sep 05, 2020 1:46 am
How to remove points on a line?
- Attachments
-
- Capture.PNG (6.91 KiB) Viewed 2691 times
-
Husky
- Moderator/Drawing Help/Testing
- Posts: 5054
- Joined: Wed May 11, 2011 9:25 am
- Location: USA
Re: How to remove points on a line?
Mouse: Rectangular Area selection from right to left (=cross selection),
Keyboard: hit delete key,
Keyboard: hit delete key,
- Husky-2020.09.04-01.png (9.23 KiB) Viewed 2686 times
Work smart, not hard: QCad Pro
QcadPro, QcadCam, Win11/64, 64GB RAM, 10-Core, SSD
If a thread is considered as "solved" pls. change the title of the 1. post to "[solved] Title..."
QcadPro, QcadCam, Win11/64, 64GB RAM, 10-Core, SSD
If a thread is considered as "solved" pls. change the title of the 1. post to "[solved] Title..."
-
CVH
- Premier Member
- Posts: 4959
- Joined: Wed Sep 27, 2017 4:17 pm
Re: How to remove points on a line?
What we see is probably a polyline ...
In that case 'Delete Node' OD (in the Draw .. poly menu)
Pls read the 'Forum rules' at the top of the page.
Regards,
CVH
In that case 'Delete Node' OD (in the Draw .. poly menu)
