- Status Assigned
- Percent Complete
- Task Type Feature Request
- Category QCAD (main)
-
Assigned To
Andrew - Operating System All
- Severity Low
- Priority Very Low
- Reported Version 3.4.0
- Due in Version Undecided
-
Due Date
Undecided
-
Votes
2
- Jacob Floyd (09.01.2025)
- CVH (25.10.2022)
- Private
FS#951 - Extra Option for Block attributes ...

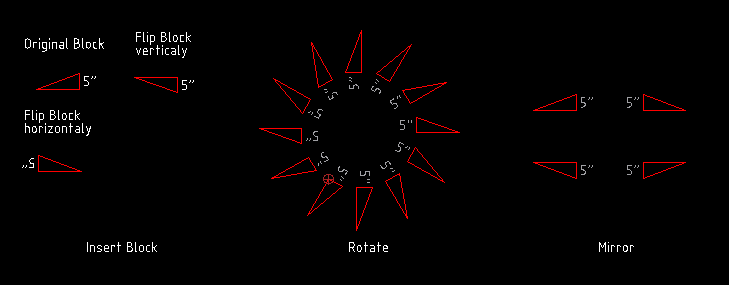

It would be nice to have the possibility to control the automatic Text orientation in Block attributes.
Something what would work like the DIM restriction: I can read the text horizontal and/or from the right side of the drawing sheet.
Right now I have the feeling that the Text orientation is dependent on the tool what I even use.
Different tools = different outcomes.
Constraining the orientation of block attribute text would be awesome.
For some blocks, the current behavior works well: I use it to annotate switches in an electrical floor plan where the 3 (for 3-way) or D (for dimmer) should rotate with the block.
For other blocks, constraining the attribute so it does not rotate with the block would be wonderful. A circuit annotation on blocks like receptacles or light fixtures would be better if the text had 0 degree rotation.
